Machine
SOLO 1 ton
A patented, compact chocolate manufacturing system integrating feeding, melting, pre-mixing, grinding, wet conching, fin
$120,000.00
5 in stock
Sign in to buy
Description
A patented, compact chocolate manufacturing system integrating feeding, melting, pre-mixing, grinding, wet conching, final refining, and flavoring in a single unit for efficient production and consistent, high-quality chocolate.
Technical Specifications
Dimensions(LxWxH)
253X188X290 cm
Weight
2.800kg
Tank Capacity
1000+1000Kg
Ball mill Capacity
50Kg
Melter Capacity
400Kg
Total power
44Kw
Voltage
380V
Frequency
50/60HZ
Features
- An integrated and compact design that combines all chocolate manufacturing stages in a single machine with an operational footprint not exceeding 6 m².
- High operational efficiency with low energy consumption.
- The machine relies on a primary mixing tank for balanced heating and homogenization of ingredients, and a final conching tank to enhance flavor and fluidity, achieving chocolate with perfect gloss and texture.
- A high-efficiency ball mill providing superior fineness up to 20–25 microns for a smooth and consistent texture.
- An advanced Conching unit to enhance flavor and remove moisture and unwanted odors.
- Automatic operation via PLC system for precise control of recipes, temperatures, and production.
- A digital weighing system (Load Cells) to ensure the accuracy of proportions.
- Production capacity for consecutive batches reaching up to 1 ton.
- Hygienic manufacturing from food-grade stainless steel with ease of operation, cleaning, and maintenance.

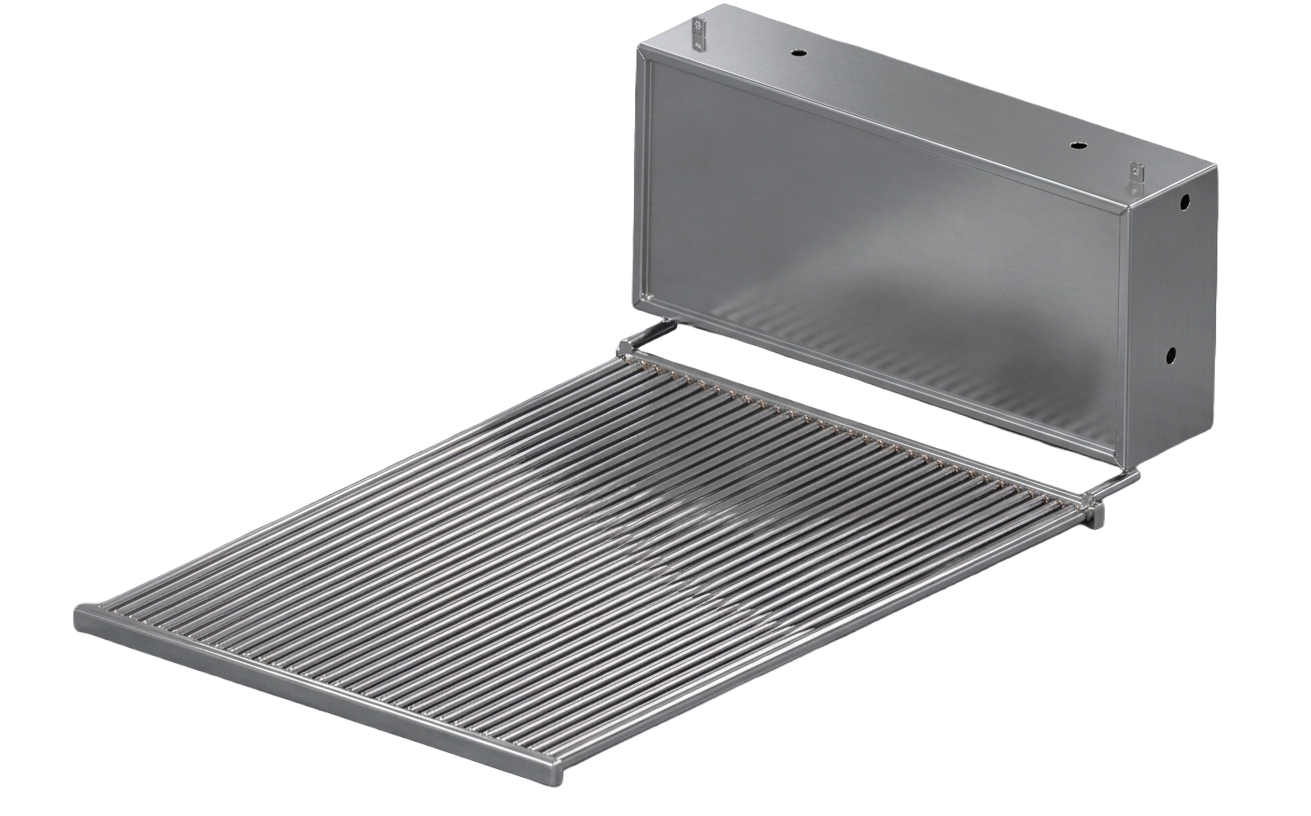

Accessories for this machine
