Machine

SOLO80 kg+ Tempering

SWB Technology

An integrated, patented chocolate manufacturing system featuring a compact and innovative design that combines all stage

$27,500.00

5 in stock

Sign in to buy

Description

An integrated, patented chocolate manufacturing system featuring a compact and innovative design that combines all stages of chocolate production into a single unit.

Technical Specifications

Dimensions(LxWxH)
129X98 X167 cm
Weight
800kg
Tank Capacity
80 Kg
Ball mill Capacity
50Kg
Total power
10Kw
Voltage
380V
Frequency
50/60HZ

Features

  • A compact industrial system integrating melting, mixing, grinding, tempering, sifting, and molding in a single unit with continuous recirculation for optimal quality.

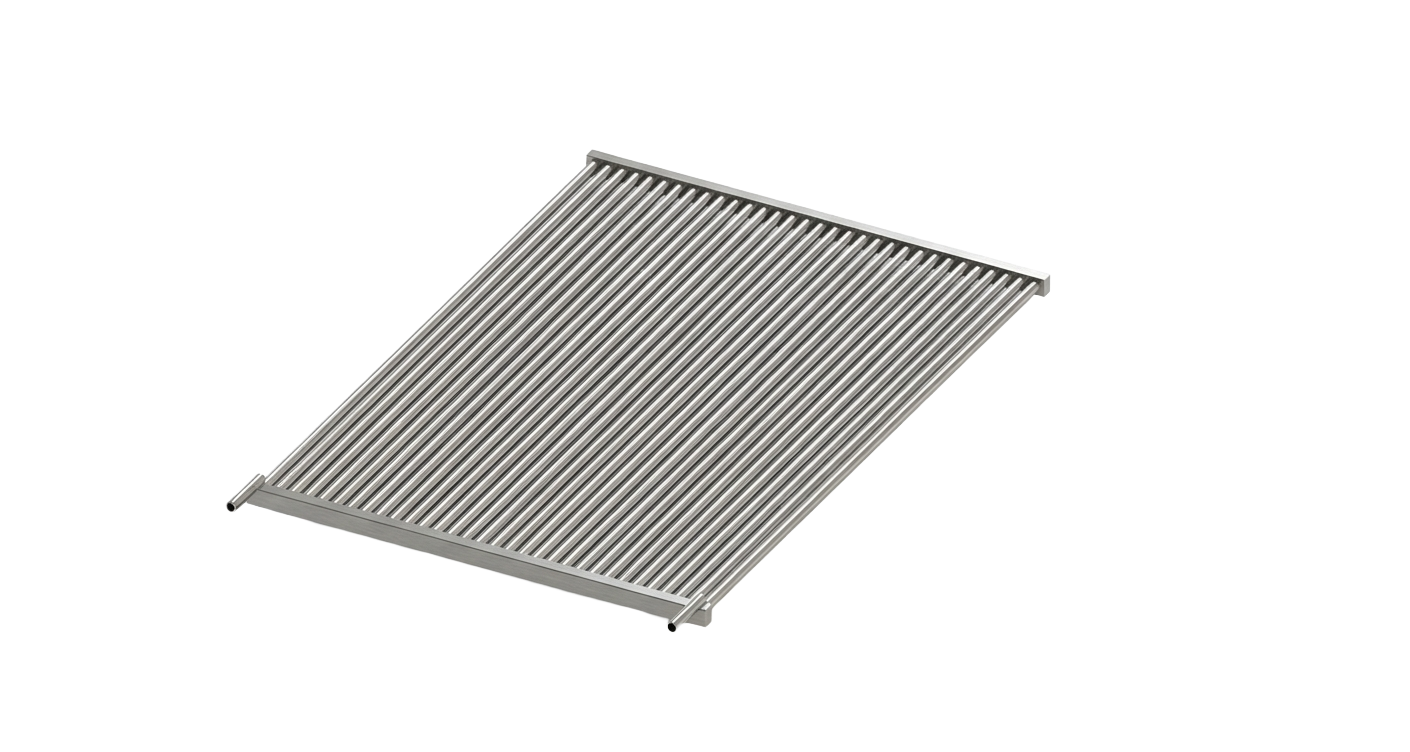

  • Efficient block melter designed to melt cocoa butter, fats, and cocoa mass using integrated electric heating elements.
  • 80 kg pre-mixing tank with a double jacket and special agitators for uniform mixing and moisture reduction.
  • Chocolate transfer pump ensures smooth and continuous transfer of chocolate between processing units.
  • Continuous ball mill delivers fine, consistent texture and can operate independently with direct hopper feeding.
  • Advanced tempering unit provides precise crystallization for superior gloss and stability.

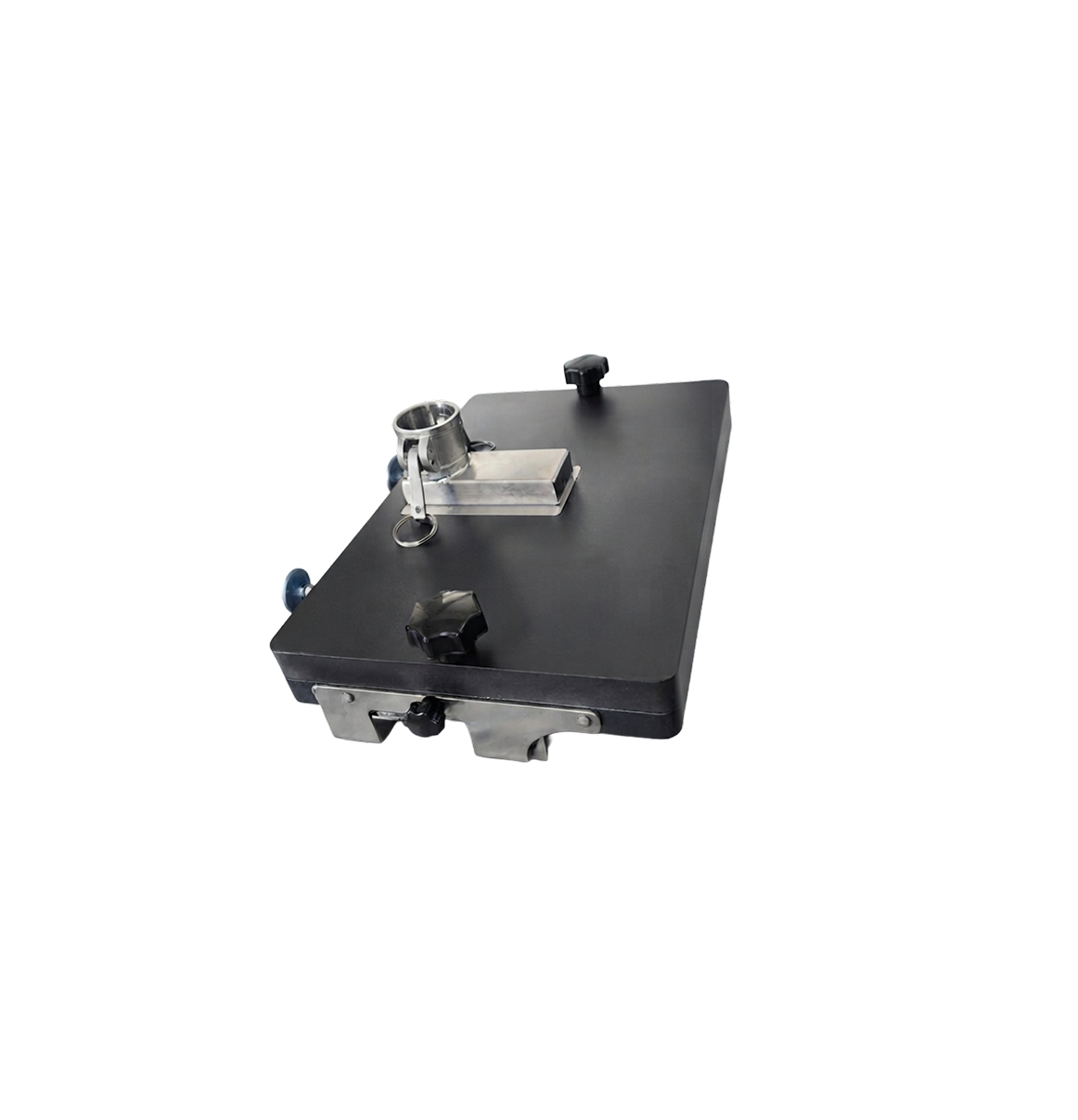

  • Compatible with an optional enrobing belt, dosing unit, and vibrating table for a complete production line.

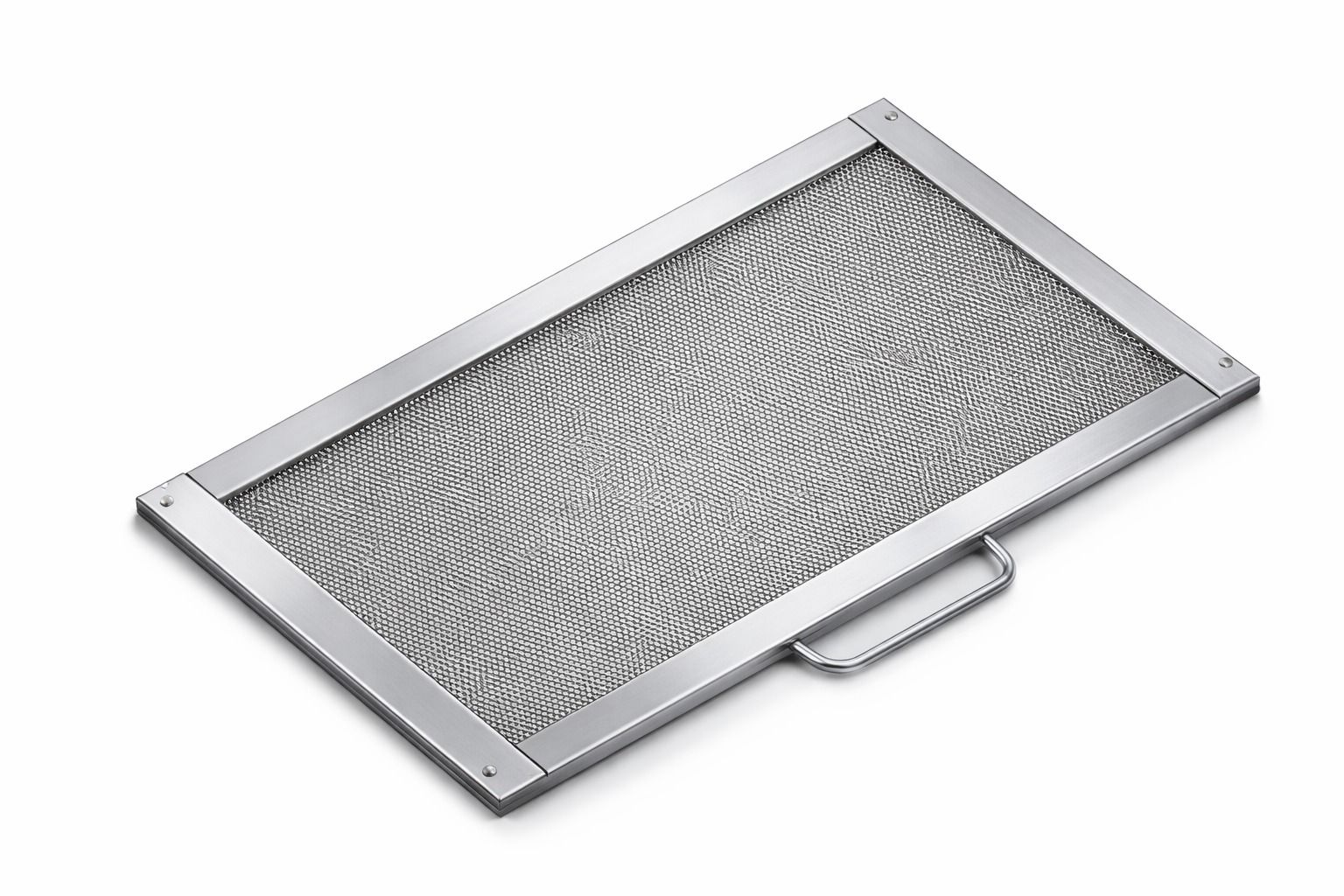

  • Optional sifting unit improves product purity and quality.
  • PLC control system manages recipes and processes for consistent production.

Accessories for this machine
